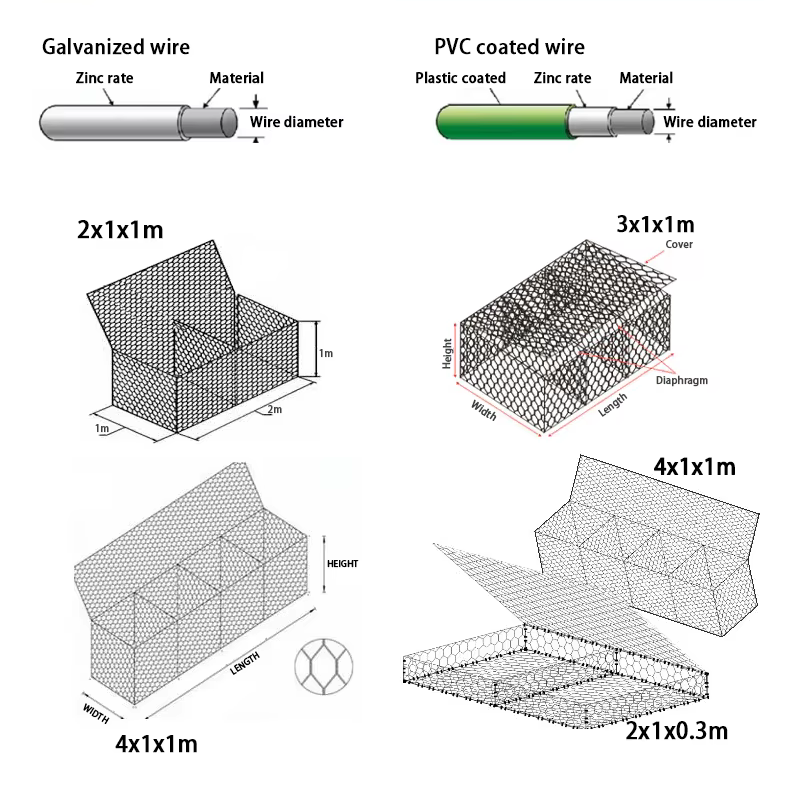

Gabion Wire Boxes are made of heavy galvanized wire / Zn-Al (Galfan) coated wire / PVC or PE coated wires, the mesh shape is hexagonal style.

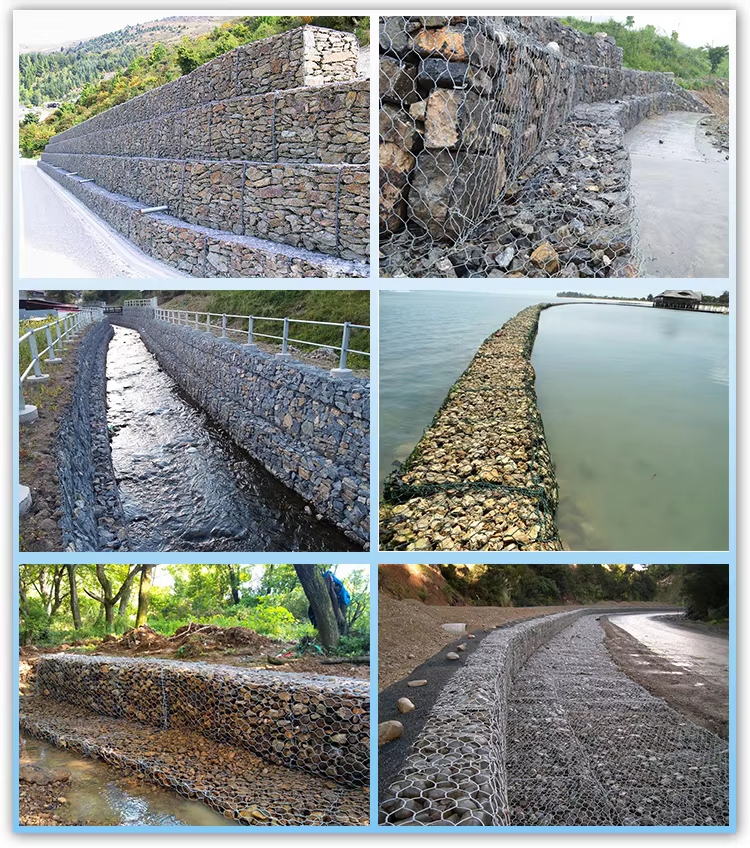

The Gabion Basket are used widely in slope protection, foundation pit supporting, mountain rock holding, river land dams scour protection.
|
Gabion Mesh
|
||||||||
|
Mesh Size
(mm)
|
Number of Diaphragm
|
Approximate dimensions and Volumes
|
Tolerance
|
Color
|
Wire diameter
(mm)
|
|||
|
Length
(m)
|
Width
(m)
|
Height
(m)
|
Height
(m)
|
|||||
|
60*80
80*100
80*120
100*120
120*150
|
1
|
2.0
|
1.0
|
0.3
|
0.6
|
Length±5%
Width±5%
Height±5%
|
Blue Red
Green
Black
|
2.0-4.0
|
|
1
|
2.0
|
1.0
|
0.5
|
1.0
|
||||
|
1
|
2.0
|
1.0
|
1.0
|
2.0
|
||||
|
2
|
3.0
|
1.0
|
0.3
|
0.9
|
||||
|
2
|
3.0
|
1.0
|
0.5
|
1.5
|
||||
|
2
|
3.0
|
1.0
|
1.0
|
3.0
|
||||
|
3
|
4.0
|
1.0
|
0.3
|
1.2
|
||||
|
3
|
4.0
|
1.0
|
0.5
|
2.0
|
||||
|
3
|
4.0
|
1.0
|
1.0
|
4.0
|
||||
|
1
|
2.0
|
0.5
|
0.5
|
0.5
|
||||
|
2
|
3.0
|
0.5
|
0.5
|
0.75
|
||||
|
customized
|
If there are other specifications or troubles! Please contact us!
|
|||||||
Stone cage net is mainly used in landscape greening, river slope protection, abutment construction, soil erosion, ecological construction, water conservancy projects and other aspects. The stone cage net is a flexible structure, which can be bent or deformed when it is subjected to a certain tension or deformation force, and has good stability and long service life.
